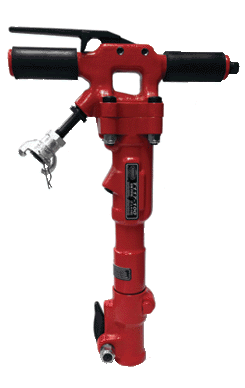

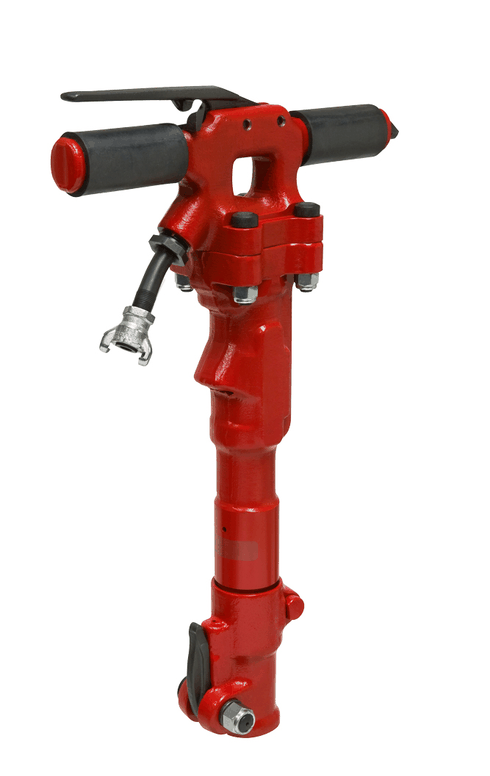

Airrex
Model: T117
Paving Breaker
This 30 lb class Paving Breaker is an ideal tool for light to medium demolition work as well as use in confined areas.
| Model | Chuck / Shank Size (inches) | Part Number |
| T117 | 7/8" x 3-1/4" | T117-78 |
| T117 | 1" x 4-1/4" | T117-100 |
| Model | Weight | Length | Bore | Stroke | Blows/min | Air Con | PSI | Chuck |
| T-117-78 | 33 lbs. | 21-3/4" | 1-3/4" | 3-3/8" | 1850 | 38cfm | 90psi | 7/8" x 3-1/4" |
| T-117-100 | 33 lbs. | 21-3/4" | 1-3/4" | 3-3/8" | 1850 | 38cfm | 90psi | 1 x 4-1/4" |
| Paving Breaker Bits | ||||
| Longer Lengths Available for Most Tools - Call: 800‐241‐9669 | ||||
| Tool: | Under Collar Length (inch): | Details: |  Part Number: |
 Part Number: |
 Asphalt Cutter |
11" | 5" Wide Blade | 78-AC | 100-AC |
 Bushing Tool |
8" | 16 Teeth | 78-BT | 100-BT |
 Clay Spade |
16" | 5-1/2" Wide Blade | 78-CS | 100-CS |
 Digging Chisel |
16" | 3" Wide Blade | 78-DC | 100-DC |
 Pin Driver |
8" | Socket: 3/8" Deep x 1-3/4" Dia. |
78-SD | 100-SD |
 Frost Wedge |
17" | 2" Wide Blade | 78-FW | 100-FW |
 Ground Rod Driver |
SOCKET DIAMETER: 11/16" | 78-GRD(A) | 100-GRD(A) | |
| 13/16" | 78-GRD(B) | 100-GRD(B) | ||
| 1" | 78-GRD(C) | 100-GRD(C) | ||
| 1-1/8" | 78-GRD(D) | 100-GRD(D) | ||
 Moil Point |
14" | LONGER LENGTHS AVAILABLE | 78P-14 | 100P-14 |
| 18" | 78P-18 | 100P-18 | ||
 Narrow Chisel |
14" | LONGER LENGTHS AVAILABLE | 78C-14 | 100C-14 |
| 18" | 78C-18 | 100C-18 | ||
 Wide Chisel |
14" | LONGER LENGTHS AVAILABLE | 78C3-14 | 100C3-14 |
| 18" | 78C3-18 | 100C3-18 | ||
 Pipe Driver |
11" | PIPE SIZE: 1" |
78-PD(A) | 100-PD(A) |
| 1-1/4" | 78-PD(B) | 100-PD(B) | ||
| 1-1/2" | 78-PD(C) | 100-PD(C) | ||
| 2" | 78-PD(D) | 100-PD(D) | ||
 Rock Buster |
13" | Taper Range: 1-1/4" to 2-1/4" Dia |
78-RB | 100-RB |
 Splitting Wedge |
17-1/2" | Drill Hole Size 2 x 12" Deep | 78-SW | 100-SW |
 Detachable Shank |
7-3/4" | FOR USE WITH: TAMPER PAD TENT STAKE DRIVER SHEATHING DRIVER |
78-DS | 100-DS |
 Tamping Pad |
6" SQUARE | TPS-6 | ||
| 8" SQUARE | TPS-8 | |||
| 7" ROUND | TPR-7 | |||
 Tent Stake Driver |
2" | TSD-200 | ||
| 2-1/2" | TSD-250 | |||
 Sheathing Driver |
2" | TSH-200 | ||
| 3" | TSH-300 | |||
Coming soon! Please call for additional pictures available for this tool.
