Airrex Quality Tools
Model: Viper ZP-Series
Air Chipping Hammer

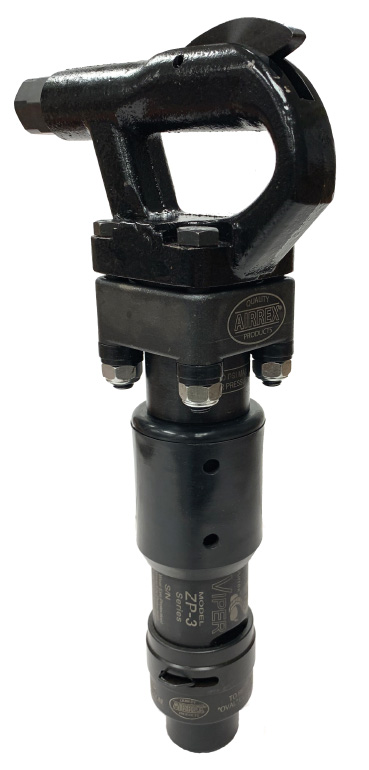

Airrex Viper-ZP 4-Bolt Chipping Hammer
This is the Best Chipping Hammer available! A hard hitting and extremely tough tool. It's low breakdown record is superb! Great for general work including ramp and bridge decks, foundry and all around light demo.
| This Tool Has A .580 Hex Shank x Oval Collar |
|
||
| Model | Product Detail | Part Number |  |
| Viper ZP-2 Hex | 2" Stroke x 0.580 Hex | 6062-H | |
| Viper ZP-3 Hex | 3" Stroke x 0.580 Hex | 6063-H | |
| Viper ZP-4 Hex | 4" Stroke x 0.580 Hex | 6064-H | |
| This Tool Has A .680 Round Shank x Oval Collar |
|
||
| Model | Product Detail | Part Number | |
| Viper ZP-2 Round | 2" Stroke x 0.680 Round | 6062-R | |
| Viper ZP-3 Round | 3" Stroke x 0.680 Round | 6063-R | |
| Viper ZP-4 Round | 4" Stroke x 0.680 Round | 6064-R | |
| Viper-ZP "H" Series | |||
| Model | 6062-H | 6063-H | 6064-H |
| Chuck Size (inches) | .580 Hex | .580 Hex | .580 Hex |
| Bore (inches) | 1-1/8" | 1-1/8" | 1-1/8" |
| Stroke (inches) | 2" | 3" | 4" |
| Blows/Min. [/sec.] | 2100 | 1650 | 1375 |
| PSI | 90psi | 90psi | 90psi |
| CFM | 32-34cfm | 33-35cfm | 34-36cfm |
| Weight (lbs.) | 17 lb | 18 lb | 19 lb |
| Length (inches) | 12-3/4" | 14-9/16" | 15-9/16" |
| Viper-ZP "R" Series | |||
| Model | 6062-R | 6063-R | 6064-R |
| Chuck Size (inches) | .680 Round | .680 Round | .680 Round |
| Bore (inches) | 1-1/8" | 1-1/8" | 1-1/8" |
| Stroke (inches) | 2" | 3" | 4" |
| Blows/Min. [/sec.] | 2100 | 1650 | 1375 |
| PSI | 90psi | 90psi | 90psi |
| CFM | 32-34cfm | 33-35cfm | 34-36cfm |
| Weight (lbs.) | 17 lb | 18 lb | 19 lb |
| Length (inches) | 12-3/4" | 14-9/16" | 15-9/16" |
| Chipping Hammer Bits | |||||
| Longer Lengths Available for Most Tools - Call: 800‐241‐9669 | |||||
| Points & Chisels | Under Collar Length (inch): |  Oval Collar Hex Shank Part Number: |  Oval Collar Round Shank Part Number: |  Round Collar Hex Shank Part Number: |  Round Collar Round Shank Part Number: |
Moil Point |
12" | OCHS-12P | OCRS-12P | RCHS-12P | RCRS-12P |
| 18" | OCHS-18P | OCRS-18P | RCHS-18P | RCRS-18P |
|
| 24" | OCHS-24P | OCRS-24P | RCHS-24P | RCRS-24P |
|
Narrow Chisel |
12" | OCHS-12C | OCRS-12C | RCHS-12C | RCRS-12C |
| 18" | OCHS-18C | OCRS-18C | RCHS-18C | RCRS-18C |
|
| 24" | OCHS-24C | OCRS-24C | RCHS-24C | RCRS-24C |
|
2in. Wide Blade Chisel |
12" | OCHS-12C2 | OCRS-12C2 | RCHS-12C2 | RCRS-12C2 |
| 18" | OCHS-18C2 | OCRS-18C2 | RCHS-18C2 | RCRS-18C2 |
|
| 24" | OCHS-24C2 | OCRS-24C2 | RCHS-24C2 | RCRS-24C2 |
|
3in. Wide Blade Chisel |
12" | OCHS-12C3 | OCRS-12C3 | RCHS-12C3 | RCRS-12C3 |
| 18" | OCHS-18C3 | OCRS-18C3 | RCHS-18C3 | RCRS-18C3 |
|
| 24" | OCHS-24C3 | OCRS-24C3 | RCHS-24C3 | RCRS-24C3 |
|
4-1/2in. Wide Clay Spade |
10" | OCHS-CS | OCRS-CS | RCHS-CS | RCRS-CS |
1 Pc. All-Steel Bushing Tool |
8" | OCHS-BT | OCRS-BT | RCHS-BT | RCRS-BT |
| Longer Lengths Available for Most Tools - Call: 800‐241‐9669 | |||||
Coming soon! Please call for safety data for this tool.
Coming soon! Please call for additional pictures available for this tool.
