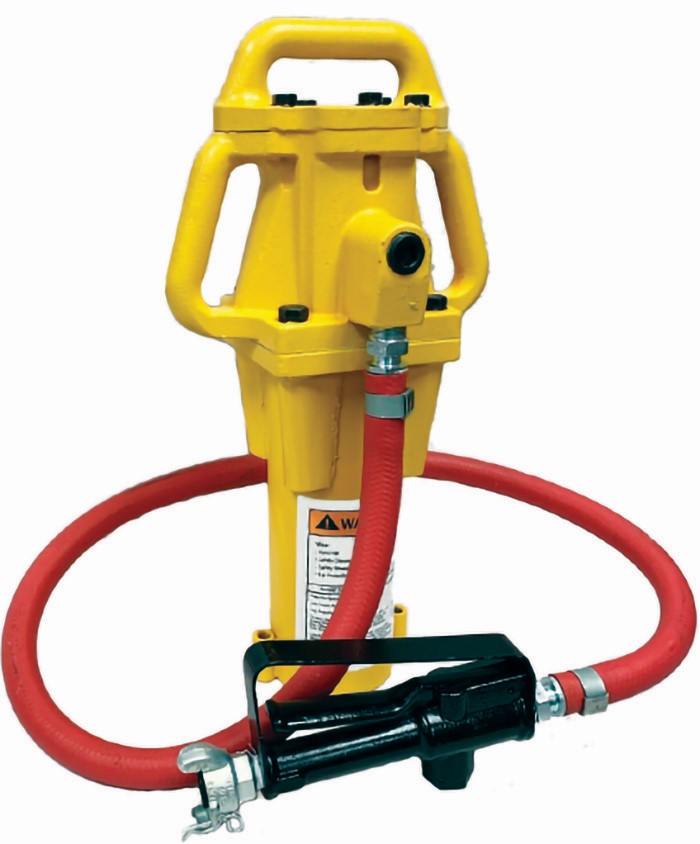

Ductile iron casting, high in strength and ductility has a 1" (25.4 mm) diameter handle
designed into the cover for easy handling and carrying. O-Ring sealed.
Body:
Ductile iron casting, with excellent wear resistant characteristics. The air inlet is cast
into the body and tapped with 3/4" NPT female threaded ports, along with 1" (25.4 mm) diameter
ergonomically designed side handles for easy handling and carrying. Chuck bolts pass thru the
lower body flange into tapped holes in the chuck mounting plate allowing special chucks to be
made in a wide variety of shapes and sizes.
Piston:
Alloy steel heat-treated with a ground surface with hard chrome plate. Designed with 2 round
valve ports to give better lubrication and load distribution to the valve ring while running.
Master Chuck and Chuck Adapters:
The 3-7/8" (98.4 mm) I.D. master chuck is an all-welded, reinforced steel and tubing construction.
The chuck is equipped with extra long chuck adapter attachment lugs. Standard chuck adapters are
available in the following sizes: 1" (25.4 mm) I.D., 1 1/2" (38.1 mm) I.D., 2" (50.8 mm) I.D., 2 1/2" ( 63.5 mm) I.D.,
3" (76.2 mm) I.D., 3 1/2" (88.9 mm) I.D. and three channel post adapters for 1.2 to 1.5 lbs/ft,
2 to 2.75 lbs/ft, and 3 to 4 lbs/ft posts.
Weight:
56 lbs (25.4 kg)
Fasteners:
S.A.E. grade-5 bolts with belleville lock washers. All fasteners are plated.
Air Consumption:
42 CFM (1.19 m3/min) @ 90 PSI (6.4 kg/cm2)
Blows Rate:
1700 BPM
