Airrex
3200-A Rock Drill
See complete drill models, specifications and accessory options below.
- Highest Quality.
- Forged Construction.
- Proven Reliability.
- Very Powerful.
- Capacity in Solid Granite is 2.5” Dia x 10’ Deep

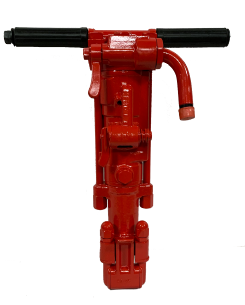

Airrex Model 3200-A
This Model 3200-A has a 7/8” Hex x 3-1/4” Chuck and
can be used on EZ-Drill Drilling Rigs.
Like all Rock Drills this tool is Designed to be used in
Solid Rock or Solid Concrete - it is Not intended for use in broken rock formations or earth drilling.
Technical Specs
Compare complete drills. + Quote adds one item; review your quote list to adjust quantities.
| Description | Model A |
|---|---|
| Part no | 3200-A |
| Weight (lb) | 57.3 |
| Length (inch) | 23 |
| Drill steel chuck hex (inch) | 7/8 x 3-1/4 |
| Impact frequency (blows/min) | 2100 |
| Impact frequency (Hz) | 35 |
| Rotation Speed (rpm) | 180 |
| Drill Rate (inch/min) | 9 |
| Max Drilling Diameter (inch) | 2 |
| Max Drilling Depth (inch) | 118 |
| Air Inlet | 3/4" Swivel |
| Air consumption (cfm) | 102 @ 90 PSI |
| Retainer Type | Latch |
| Muffler | Option |
| Vibration level 3 axes (ISO 20643) (m/sec²) | 21.9 |
| Sound power level guaranteed (2000/14/EC) (Lw, dB(A)) | 122 |
| Sound pressure level (ISO 11203) (Lp, r = 1m) | 111 |
| Complete tool | 3200-APart 3200-A7/8" x 3-1/4" HEX (A)I'm interested at JackHammers.com |
Accessory Tools
“H” Thread Rods & Bits
Drill rodsAH series · 7/8" × 3-1/4" shank  | ||
|---|---|---|
| Length under collar Feet (Inches) | Rod part number & quote | |
| 1' (12") | ||
| 1'6" (18") | ||
| 2' (24") | ||
| 3' (36") | ||
| 4' (48") | ||
| 5' (60") | ||
| 6' (72") | ||
| Rock bitsBits shown fit all “H” thread rods in this chart. Choose diameter independently of rod length. | ||
| Diameter (inches) |  Cross carbide insert bitFor broken & rough rock |  Button carbide insert bitFor fast penetration |
| 1-1/4" | ||
| 1-3/8" | ||
| 1-1/2" | ||
| 1-5/8" | ||
| 1-3/4" | ||
| 1-7/8" | ||
| 2" | ||
1-inch Rope / R25 / 100 Rods & Bits
Drill rodsAZ series · 7/8" × 3-1/4" shank  | ||
|---|---|---|
| Length under collar Feet (Inches) | Rod part number & quote | |
| 1' (12") | ||
| 1'6" (18") | ||
| 2' (24") | ||
| 3' (36") | ||
| 4' (48") | ||
| 5' (60") | ||
| 6' (72") | ||
| Rock bitsBits shown fit the 1-inch Rope / R25 / 100 rods in this chart. Choose diameter independently of rod length. | ||
| Diameter (inches) | Cross carbide insert bitFor broken & rough rock | Button carbide insert bitFor fast penetration |
| 1-1/4" | ||
| 1-3/8" | ||
| 1-1/2" | ||
| 1-5/8" | ||
| 1-3/4" | ||
| 1-7/8" | ||
| 2" | ||
1 Piece Plug Bits
| A series · 7/8" × 3-1/4" shank | |||
|---|---|---|---|
| Length under collar (inches) | Drill depth (inches) | Drill diameter (inches) | Part number & quote |
| 9" | 6" | 5/8" | |
| 9" | 6" | 3/4" | |
| 9" | 6" | 7/8" | |
| 9" | 6" | 1" | |
| 9" | 6" | 1-1/8" | |
| 9" | 6" | 1-1/4" | |
| 9" | 6" | 1-1/2" | |
| 12" | 9" | 5/8" | |
| 12" | 9" | 3/4" | |
| 12" | 9" | 7/8" | |
| 12" | 9" | 1" | A12-100Buy Here at JackHammers.com |
| 12" | 9" | 1-1/8" | A12-118Buy Here at JackHammers.com |
| 12" | 9" | 1-1/4" | A12-125Buy Here at JackHammers.com |
| 12" | 9" | 1-1/2" | A12-150Buy Here at JackHammers.com |
| 18" | 15" | 5/8" | |
| 18" | 15" | 3/4" | |
| 18" | 15" | 7/8" | |
| 18" | 15" | 1" | A18-100Buy Here at JackHammers.com |
| 18" | 15" | 1-1/8" | A18-118Buy Here at JackHammers.com |
| 18" | 15" | 1-1/4" | A18-125Buy Here at JackHammers.com |
| 18" | 15" | 1-1/2" | A18-150Buy Here at JackHammers.com |
| 24" | 21" | 5/8" | |
| 24" | 21" | 3/4" | |
| 24" | 21" | 7/8" | |
| 24" | 21" | 1" | A24-100Buy Here at JackHammers.com |
| 24" | 21" | 1-1/8" | A24-118Buy Here at JackHammers.com |
| 24" | 21" | 1-1/4" | A24-125Buy Here at JackHammers.com |
| 24" | 21" | 1-1/2" | A24-150Buy Here at JackHammers.com |
| 30" | 27" | 5/8" | |
| 30" | 27" | 3/4" | |
| 30" | 27" | 7/8" | |
| 30" | 27" | 1" | A30-100Buy Here at JackHammers.com |
| 30" | 27" | 1-1/8" | A30-118Buy Here at JackHammers.com |
| 30" | 27" | 1-1/4" | A30-125Buy Here at JackHammers.com |
| 30" | 27" | 1-1/2" | A30-150Buy Here at JackHammers.com |
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
